GF Flutter Animation

A Flutter Container is a simple but yet most used widget in any application that has a well-defined properties like height, width, border etc.

A container can be animated according to the user needs and that type is called a AnimatedContainer widget. It is a simple container with animation effects which is achieved by altering the values of the container properties. These types of animations in Flutter is known as ‘Implicit Animation’. We will learn in detail throught the below example of AnimatedContainer Widget.

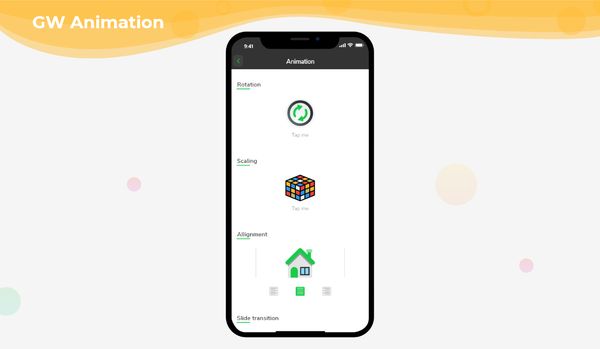

GFAnimation is a Flutter Animation wherein it makes the UI smooth for the user and the user interaction with the app will be easier. GFAnimation makes it easy to implement a variety of animations.

GF Flutter Animation Type :

1. GF Flutter Rotation Animation

GFAnimation property type: GFAnimationType.rotateTransition , creates a rotation transition for the child of type widget. This type of animation will animate the rotation of a widget.

The below example code shows the Flutter rotation animation.

  late AnimationController controller;
  late Animation<double> animation;

  @override
  void initState() {
    super.initState();
    controller =
        AnimationController(duration: const Duration(seconds: 5), vsync: this);
    animation = new CurvedAnimation(parent: controller, curve: Curves.linear);
    controller.repeat();
  }

GestureDetector(
  onTap: () {
    controller.repeat();
  },
  child: GFAnimation(
    turnsAnimation: animation,
    controller: controller,
    type: GFAnimationType.rotateTransition,
    alignment: Alignment.center,
    child: Image.asset(
      'assets image here',
      width: 80,
      height: 80,
    ),
  ),
),

2. GF Flutter Animation Scaling

GFAnimation property type: GFAnimationType.scaleTransition , creates a scale transition for the child of type widget. It animates the scale of a transformed widget. The below code shows the flutter scale animation.

  late AnimationController controller;
  late Animation<double> animation;

  @override
  void initState() {
    super.initState();
    controller =
        AnimationController(duration: const Duration(seconds: 5), vsync: this);
    animation = new CurvedAnimation(parent: controller, curve: Curves.linear);
    controller.repeat();
  }

GestureDetector(
  onTap: () {
    controller.repeat();
  },
  child: GFAnimation(
    scaleAnimation: animation,
    controller: controller,
    type: GFAnimationType.scaleTransition,
    child: Image.asset(
      'assets image here',
      width: 80,
      height: 80,
    ),
  ),
),

3. GF Flutter Animation Alignment

GFAnimation property type: GFAnimationType.align , creates an alignment transition for the child of type widget. Animates the position alignment of a widget over a given duration whenever alignment changes. The below gives alignment type of animation

GFAnimation(
  duration: Duration(seconds: 2),
  alignment: Alignment.bottomLeft,
  type: GFAnimationType.align,
  child: Image.asset(
    'assets image here',
    width: 80,
    height: 80,
  ),
),

4. GF Flutter Page Slide Transition

GFAnimation property type: GFAnimationType.slideTransition , creates a fractional translation transitions for the child of type widget. Animates the position of a widget relative to its normal position. The below codes shows the example of flutter slide transition example animation.

 late Animation<Offset> offsetAnimation;
  @override
  void initState() {
    super.initState();
    controller =
        AnimationController(duration: const Duration(seconds: 5), vsync: this);
    animation = new CurvedAnimation(parent: controller, curve: Curves.linear);
    controller.repeat();
    offsetAnimation = Tween<Offset>(
      begin: Offset(-5, 0),
      end: const Offset(0, 0),
    ).animate(CurvedAnimation(
      parent: controller,
      curve: Curves.linear,
    ));
  }

Container(
  width: MediaQuery.of(context).size.width,
  child: GFAnimation(
    controller: controller,
    slidePosition: offsetAnimation,
    type: GFAnimationType.slideTransition,
    child: Image.asset(
      'assets image here',
      width: 80,
      height: 80,
    ),
  ),
),

5. GF Flutter Animation Size

GFAnimation property type: GFAnimationType.size , creates a widget that animates its size. Animates the widget that automatically transitions its size in a given duration whenever the given child's size changes. The example below demonstrates the Text size animation in flutter.

bool selected = false;

late AnimationController controller;
late Animation<double> animation;

@override
  void initState() {
    super.initState();
    controller =
        AnimationController(duration: const Duration(seconds: 5), vsync: this);
    animation = new CurvedAnimation(parent: controller, curve: Curves.linear);
    controller.repeat();
  }

GFAnimation(
  onTap: () {
    if (mounted) {
      setState(() {
        selected = !selected;
      });
    }
  },
  width: selected ? 100 : 50,
  height: selected ? 100 : 50,
  type: GFAnimationType.size,
  controller: controller,
  child: Image.asset(
    'assets image here',
     width: 80,
    height: 80,
  ),
),

6. GF Flutter Animation Container

GFAnimation property type: GFAnimationType.container , creates a widget gives the zooming effect. Animates the widget that automatically zooms in and out in a given duration whenever the given child's size changes. The below example shows the effect of animation.

late AnimationController controller;
late Animation<double> animation;
double _fontSize = 30;

@override
  void initState() {
    super.initState();
    controller =
        AnimationController(duration: const Duration(seconds: 5), vsync: this);
    animation = new CurvedAnimation(parent: controller, curve: Curves.linear);
    controller.repeat();
  }

GFAnimation(
  width: 50,
  changedWidth: 100,
  height: 50,
  changedHeight: 100,
  activeColor: Colors.transparent,
  color: Colors.transparent,
  fontSize: _fontSize,
  type: GFAnimationType.container,
  child: Image.asset(
    'assets image here',
     width: 80,
    height: 80,
  ),
),

GF Flutter Animation Custom Properties

The look and feel of the GFAnimation can be customized using the GFAnimation properties.

Name	Description
duration	The duration for animation to perform
reverseDuration	The duration for reverse animation to perform
alignment	Defines how the animated widget is aligned during Animation.
activeAlignment	Defines how the animated widget is aligned(after the onTap) during Animation.
child	The child of type [Widget] to display animation effect.
curve	Determines the animation curve. Defaults to [Curves.linear].
type	type of [GFAnimation] which takes the type ie, align, size, container, rotateTransition, scaleTransition, slideTransition, and textStyle for the [GFAnimation]
width	defines [AnimatedContainer] initial width
changedWidth	defines the width of [AnimatedContainer] upto which it can expand during animation
height	defines [AnimatedContainer] initial height
changedHeight	defines the height of [AnimatedContainer] upto which it can expand during animation
activeColor	defines the color of [AnimatedContainer] when onTap triggers
color	defines the color of [AnimatedContainer]
padding	defines [child]'s or [AnimatedContainer] padding
margin	defines [child]'s or [AnimatedContainer] margin
onTap	Called when the user taps the [child]
turnsAnimation	For GFAnimationType.rotateTransition, customized turns animation can be added to [RotationTransition] widget
scaleAnimation	For GFAnimationType.scaleTransition, customized scale animation can be added to [ScaleTransition] widget
controller	Type of [AnimationController], its a controller of an animation.
textDirection	Defines direction of the [AnimatedDefaultTextStyle] TextDirection i.e [ltr,rtl]
slidePosition	For GFAnimationType.slideTransition, which animates the position of a widget.
style	Defines the [TextStyle] of [AnimatedDefaultTextStyle]
textAlign	Defines the [TextAlign] of [AnimatedDefaultTextStyle]
textOverflow	Defines the [TextOverflow] of [AnimatedDefaultTextStyle]
maxLines	Defines the [maxLines] of [AnimatedDefaultTextStyle]
textWidthBasis	Defines the [TextWidthBasis] of [AnimatedDefaultTextStyle]
fontSize	Defines the [fontSize] of [AnimatedDefaultTextStyle]
fontWeight	Defines the [fontWeight] of [AnimatedDefaultTextStyle]

FAQ

Q. How can I implement an animated Container from left to right?

Animated Container is a simply a container with animations on them. We have different types of animations that can be applied to the container. Here we will be using the GetWidget Library for our code example as this library has many customisation options and is easy to use with less code of lines.

To implement the movement of animation from left to right and vice-versa, we can use the GF Flutter Animation Alignment property and achieve our goal easily. Here is the code example.

GFAnimation(
  duration: Duration(seconds: 2),
  alignment: Alignment.bottomLeft,
  type: GFAnimationType.align,
  child: Image.asset(
    'assets image here',
    width: 80,
    height: 80,
  ),
),
